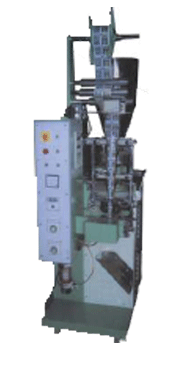

Form Fill & Sealing Machine Based Cup Systems

integrates sachet making, filling, sealing and coding through its form fill seal machines. These form fill seal machine is incorporated with advanced technical features to ensure trouble free performance.

The Machine operate on the principle of Volumetric syringe systems with a provision of volume adjustment. This machine can be packed liquid items such as Shampoo, Tomato Ketchup, 2T Oil, Syrup Hair Oil etc. We have earned the tag of most reliable Automatic Pouch Packing Machine Manufacturer and Supplier in India.

Features of Form Fill Seal Machine:
  • Machine speed is variable
  • Low waste Disposal
  • Tower Light indication.
  • Emergency Stop.
  • Easy to change for Different Pouch Size and filling volume
  • Digital photo and temperature controller unit
  • Fully automatic Compact and Robust machine.
  • Simple Operation, No Technician required.
  • All parts in contact with product made of Stainless Steel.

Form Fill Based Cup Systems
Technical Specification
Capacity 5-20 ml, 20 ml - 40 ml, 40 - 100 ml 100 - 250 ml, 250 - 500 ml, 500 - 1000 ml
(Different types of machines)
Sealing Type 3 side seal, 4 side seal
Film Size 60 - 350 mm width, 40 - 200 ml length
Speed 20 to 80 bags per minute
Power ½ HP Motor, 220 V, 50 Hz, Single Phase
Net Weight 350 - 400 Kgs. (Approx)
M/C. Dimension 790 x 660 x 1730 mm

  • Simple Operation, No Technician required.
  • All parts in contact with product made of Stainfess Steel.

Sealing Type
Three
Side Seal
Centre
Seal
Four Side
Seal
